Overview

You can create a map with various countries or states highlighted in custom colors. To specify a map, you will specify which region of the world the map should zoom into. You will also specify a list of regions that should be colored in the map, and a parallel data list that assigns a numeric value to each corresponding country. Each country is colored along a gradient, according to the value assigned to it. You can optionally specify a custom color gradient for data values.

Map charts support the following parameters:

Parameter	Required or Optional	Description
`cht=t`	Required	Specifies a map chart.
`chs`	Required	Map size. Maximum size for a map is 440x220.
`chtm=<zoom_area>`	Required	Geographical area shown in the chart. zoom_area - One of the following values `africa` `asia` `europe` `middle_east` `south_america` `usa` `world`
`chld=<country_or_state_codes>`	Required	A list of countries or states to which you are applying values. country_or_state codes - These are a set of two-character codes, with no delimiter in between. Use either of the following types (you cannot mix types): ISO 3166-1-alpha-2 codes for countries, or USA state codes Example: `chld=DZEGMG`
`chd=<country_values>`	Required	A list of values parallel to the list of regions, where the value applies to the corresponding region. Values are standard formatted data values. Each region will be assigned a color along the scale specified in chco, where the lowest value in the range applies to the lowest color, and the highest value in that range applies to the last color. country_values - A list in the appropriate format string. Examples: `t:10,20,30`, `s:aU2Ff`, and `e:BaPoqM-A`.
`chco=<default_color>,<start_of_gradient>,...,<end_of_gradient>`	Optional	A range of colors corresponding to the low and high data values for the data format range. Data values are converted to color values along this gradient, and applied to the corresponding countries. default_color - [Optional] The color of regions that do not have data assigned. The default is BEBEBE (medium gray). An RRGGBB format hexadecimal number. start_of_gradient - [Optional] The color corresponding to the minimum value in the data format range. Default value is 0000FF (blue). An RRGGBB format hexadecimal number. ... - [Optional] You can have as many intermediate colors as you like. end_of_gradient - [Optional] The color corresponding to the maximum value in the data format range. Default is FF0000 (red). An RRGGBB format hexadecimal number
`chtt, chts`	Optional	Chart title and style
`chma`	Optional	Chart margins
`chf=bg`	Optional	Solid fills (background only)

Examples

Description Example

Description	Example
In this example: The chart zoom area is Africa (`chtm=africa`). The three countries are going to be assigned values: Algeria, Egypt, and Madagascar (`chld=DZEGMG`) The three values assigned to those countries are 0, 100, and 50 respectively (`chd=t:0,100,50`), which are the minimum, maximum, and middle values for text format data. The range of colors is red for 0, green for 100, and white for unassigned countries (`chco=FFFFFF,FF0000,00FF00`). The chart also has a light blue background fill (`chf=bg,s,EAF7FE`).	`cht=t chtm=africa chld=DZEGMG chd=t:0,100,50 chco=FFFFFF,FF0000,00FF00 chf=bg,s,EAF7FE`
This chart is similar to the previous one, but with more detail.	`chtm=africa chld=DZEGMGAOBWNGCFKECGCVSNDJTZGHMZZM chco=FFFFFF,FF0000,FFFF00,00FF00 chd=t:0,100,50,32,60,40,43,12,14,54,98,17,70,76,18,29 chf=bg,s,EAF7FE`
This chart specifies that no countries are highlighted by specifying a single, undefined value (`chd=t:-1`).	`chs=440x220 chd=t:-1 cht=t chtm=world`

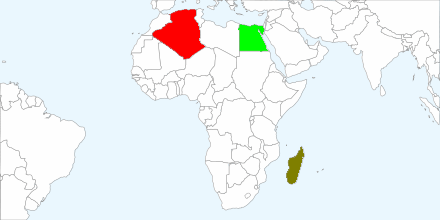

In this example:

The chart zoom area is Africa (chtm=africa).
The three countries are going to be assigned values: Algeria, Egypt, and Madagascar (chld=DZEGMG)
The three values assigned to those countries are 0, 100, and 50 respectively (chd=t:0,100,50), which are the minimum, maximum, and middle values for text format data.
The range of colors is red for 0, green for 100, and white for unassigned countries (chco=FFFFFF,FF0000,00FF00).
The chart also has a light blue background fill (chf=bg,s,EAF7FE).

Map of Africa
cht=t chtm=africa chld=DZEGMG chd=t:0,100,50 chco=FFFFFF,FF0000,00FF00 chf=bg,s,EAF7FE

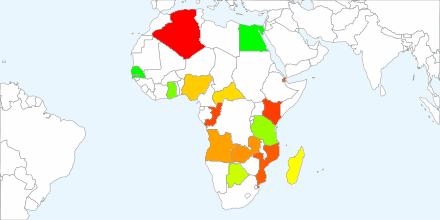

This chart is similar to the previous one, but with more detail.

chtm=africa

            chld=DZEGMGAOBWNGCFKECGCVSNDJTZGHMZZM

            chco=FFFFFF,FF0000,FFFF00,00FF00

            chd=t:0,100,50,32,60,40,43,12,14,54,98,17,70,76,18,29

            chf=bg,s,EAF7FE

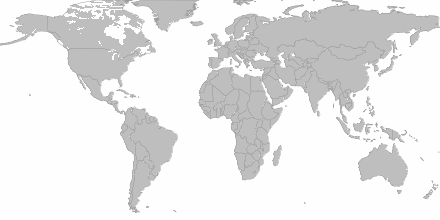

This chart specifies that no countries are highlighted by specifying a single, undefined value (chd=t:-1).

chs=440x220

            chd=t:-1

            cht=t

            chtm=world

United States State Codes

Here are the supported state codes when the map is zoomed into the United States (chld=usa).

AL	Alabama	LA	Louisiana	OH	Ohio
AK	Alaska	ME	Maine	OK	Oklahoma
AZ	Arizona	MD	Maryland	OR	Oregon
AR	Arkansas	MA	Massachusetts	PA	Pennsylvania
CA	California	MI	Michigan	RI	Rhode Island
CO	Colorado	MN	Minnesota	SC	South Carolina
CT	Connecticut	MS	Mississippi	SD	South Dakota
DE	Delaware	MO	Missouri	TN	Tennessee
FL	Florida	MT	Montana	TX	Texas
GA	Georgia	NE	Nebraska	UT	Utah
HI	Hawaii	NV	Nevada	VT	Vermont
ID	Idaho	NH	New Hampshire	VA	Virginia
IL	Illinois	NJ	New Jersey	WA	Washington
IN	Indiana	NM	New Mexico	WV	West Virginia
IA	Iowa	NY	New York	WI	Wisconsin
KS	Kansas	NC	North Carolina	WY	Wyoming
KY	Kentucky	ND	North Dakota

Standard Features

The rest of the features on this page are standard chart features.
